IPM-90-550 Midspan PoE 1 channel 10/100/1000Mbps 55V 90W

Manufacturer: ATTE
Product code: IPM-90-550
Price: €104.70 104.70
Net price: €85.12
Availability: Out of stock
quantity pcs.

Description

IPM-90-550 is a single-port gigabit PoE midspan compliant with IEEE 802.3af/at/bt standards (90W) with a built-in LCD display.

It is used to power PoE-compliant devices in LANs. Placed between a switch that does not have PoE power (or does not have a sufficient power budget) and network devices (e.g. cameras, access points, extenders), it enables simultaneous power and data transmission to PoE IP devices using a single UTP cable at 10/100/1000Mbps.



What distinguishes it from other solutions available on the market?

  • high power available to receivers (up to 90W) and high efficiency of 96%
  • support for all common PoE standards
  • built-in display showing operating status and power supply parameters, acting as a PoE tester

IPM-90-550 PoE injector supports all popular PoE, PoE+, Hi PoE receiver power standards in 3 operating modes selectable from a handy menu.

Supported PoE standards:

  • 802.3af/at/bt standard
  • PoH mode equivalent to PoE+ and HiPoE for demanding non-standardised receivers
  • Passive PoE with auto negotiation (e.g. all devices in the ATTE xPoE-xx series ecosystem)

A unique feature for this type of solution is the built-in display. It allows viewing of the current operating status and operation of menu functions.

Information available on the display:

  • PoE standard in which the connected receiver was recognised and powered
  • number of twisted pair pairs over which the 2P/4P power supply is sent
  • current power consumed by the receivers
  • value of the PoE power supply voltage
  • graphical indicator of the internal temperature
  • graphical indicator of load level
  • maximum instant power consumed since switching on

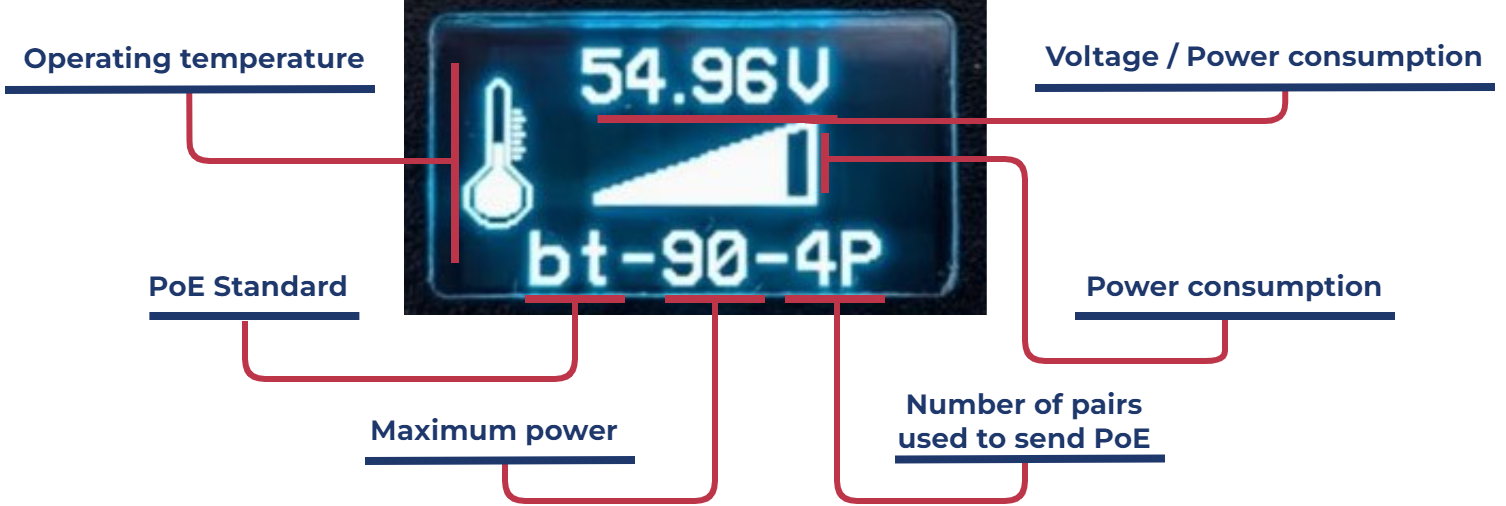

Example information available on the display



In addition to its basic function as a universal PoE power supply, the IPM-90-550 is a convenient tool for the installer to quickly commission, power and diagnose PoE devices. It makes it possible to take a quick measurement of the power consumption of consumers to make precise calculations of back-up time or the capacity of required batteries for buffer systems. Actual power measurement and accurate calculations allow savings when designing buffer sets with planned long back-up times.

In combination with the APT and xPoE series, it enables us to create extensive installations in a tree topology using only UTP cables without running 230VAC power. This allows us to make maximum use of the available cabling and to supply power to demanding consumers over long distances.

Key features and functions:

  • powering any device operating in most PoE standards
  • display showing the current operating status in an easy to read manner
  • simple PoE tester/meter function for easy power budget calculation
  • dedicated power supply for cascaded APT series extenders
  • support for PoE receivers with high power consumption
  • designed for 10/100/1000Mbps networks
  • high 96% efficiency
  • support for Passive PoE receivers
  • optical signalling of operating status
  • port protection (overvoltage, overcurrent)

The IPM-90-550 is supplied in a plastic housing to protect the user from direct contact with the device electronics.

The device has a protection level of IP20, a suitable enclosure is required to provide protection against weather and condensation. Adequate space must also be provided for adequate air circulation and to spare the cables, taking into account the manufacturer's recommended bending radius.



Installation notes



  • The device is designed for continuous operation at 90W with proper cooling during operation
  • The operating mode (PoE power standard) can be changed within 5 seconds after connecting the device to the power supply, it is saved to be changed again when the device starts up.
  • The device is supplied with 230V mains voltage and does not offer buffer power supply. If there is a need to maintain the power supply to consumers connected to the IPM-90-550, an additional UPS should be used. In facilities where long backup times are important, a different solution should be used. The most advantageous solution would be a buffer set consisting of an AUPS series power supply, a suitable inverter and an APT-5-50 switch, which can support four receivers with up to 60W (802.3bt60).



Examples of applications

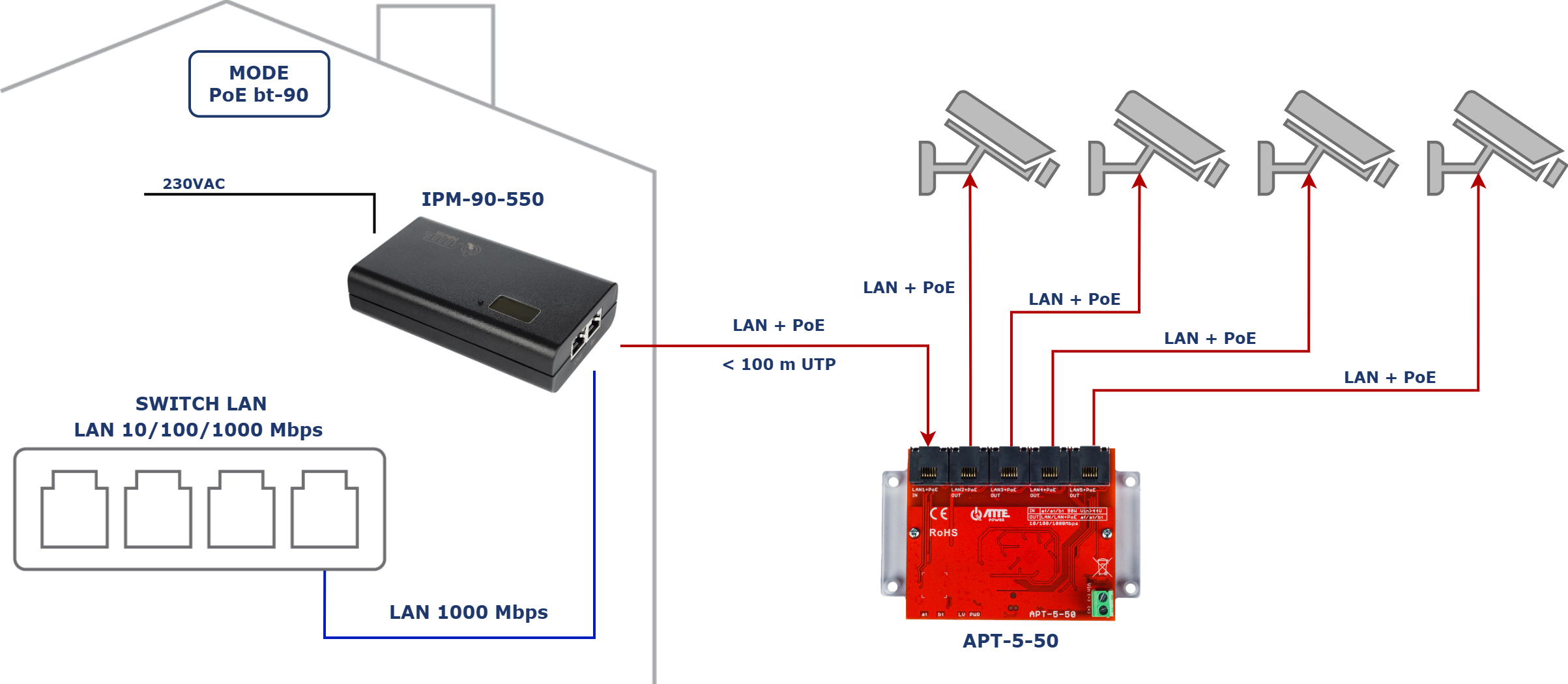

Example application of the IPM-90-550 to power 4 PoE IP cameras on a single UTP cable using an APT-5-50 switch. The operating mode used is PoE bt-90.

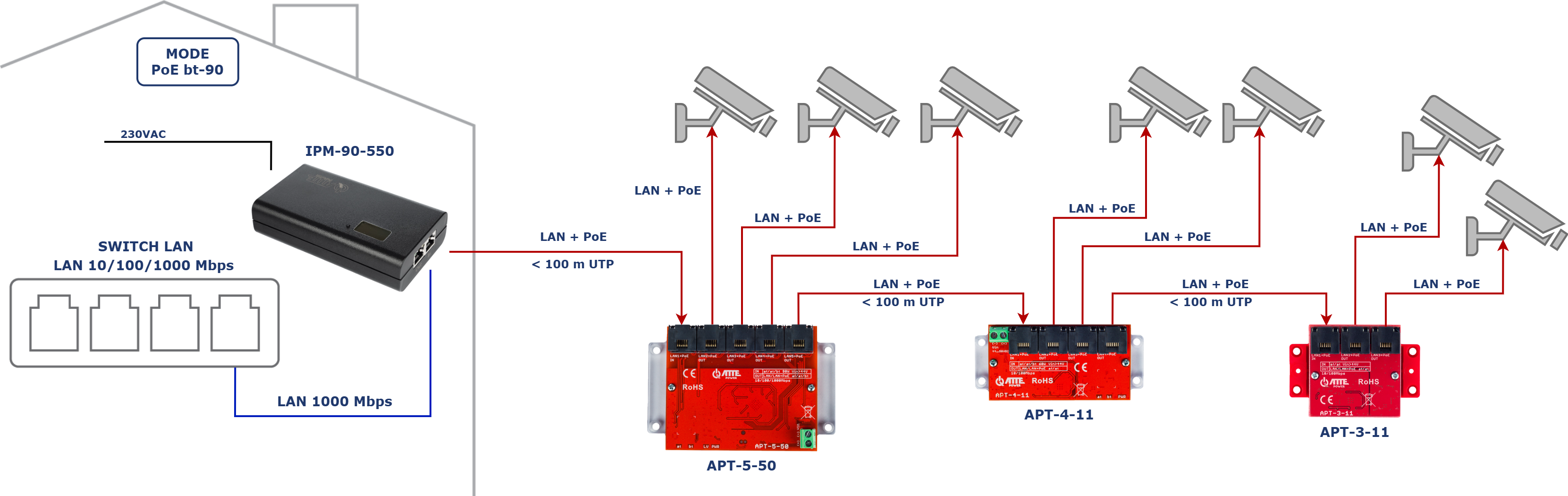

Example application of the IPM-90-550 to power 7 PoE IP cameras on a single UTP cable using APT extenders. The operating mode used is PoE bt-90.

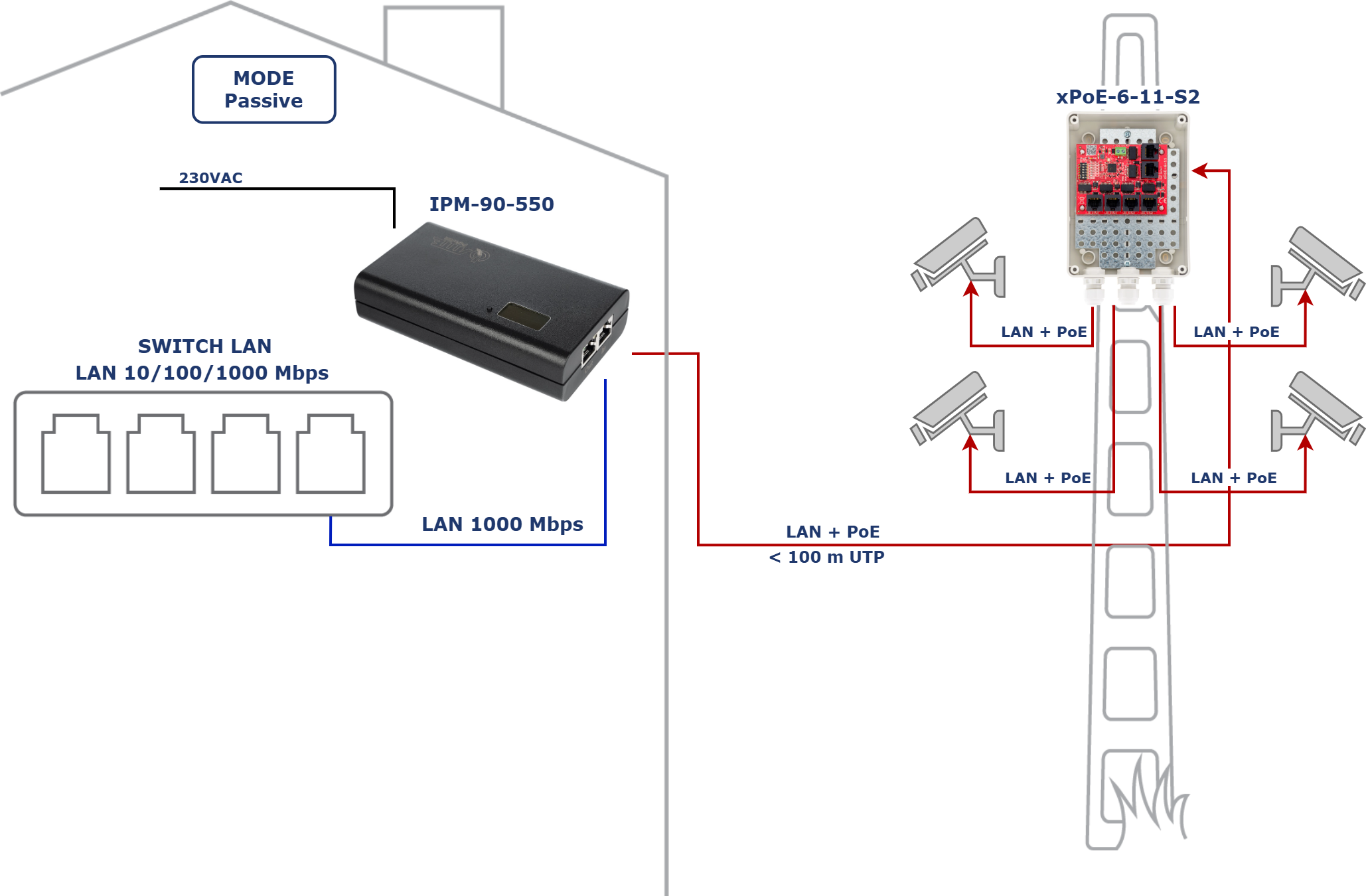

Example use of the IPM-90-550 as a PoE Midspan for the xPoE-6-11-S2 switch in PoE Passive operation.

Technical data

Total number of ports: 2 RJ45 ports, 1 AC_IN socket
Input Voltage: 190 ... 260 VAC, 50 Hz
Output PoE Voltage: 55 VDC +/-2%
Surge protection: LAN+PoE OUT and AC_IN
Overload protection: LAN+PoE OUT and AC_IN
Selection of PoE standard at the input: Using the button next to the display
Power: 90 W
Thermal protection of the power supply: LAN + PoE OUT
Efficiency: 96% @90W
Operation signalling: Information shown on the display
PoE indication: LED RJ45 port (yellow) - presence of PoE
Transmission indication: LED RJ45 port (green) - link and data transmission
Temperature range: -10°C ... +50°C
Dimensions: 67 x 126 x 42 mm
Weight: 0,194 kg
IP rating: IP20
Housing construction: Dedicated plastic casing
EAN code: 5902143691372
PKWiU code: 26.30.23.0
HS code: 8517 62
CN2020 code: 8517 62 00
