SDIP-12-121 Gigabit PoE adapter reducing voltage to 12V
Description
SDIP-12-121 is a gigabit PoE adapter with a voltage-reducing converter. The device allows us to power devices with a nominal voltage of 12V from a PoE 802.3af port. The primary use of the adapter is to power devices such as a camera, door station with a door opener requiring 12V power.
SDIP-12-121 is a PoE splitter fully compatible with PoE switches operating in accordance with the 802.3af standard. The device does not have PoE power supply at RJ45 output.
Key features and function:
- designed for 10/100/1000Mbps networks
- compatible with 802.3af PoE switches
- high energy efficiency >90%
- cooperation with passive PoE power supplies 35-56V
- small size of the module
- optimised RJ45 connector layout for easy installation in installation boxes
Signalling of operating status is realised via LEDs:
- LEDs in RJ45 connectors - PoE power supply on the port
- LED DC - information about the 12V voltage on the DC connector
Total power budget of the SDIP-12-121 is 12W. Higher power adapters, such as the SDIP-20-AD0 (20W) and SDIP-40-120 (40W), are also available to fulfil the same application for higher demand.
The device has a protection level of IP20, a suitable enclosure (minimum IP44) is required to ensure protection from the elements and condensation.
The device has a very small size, which allows it to be easily integrated into small enclosures.
The adapter has a polycarbonate base to protect the electronics from mechanical damage.
Installation notes
- the splitter does not have PoE power supply at RJ45 output.
- the maximum power of the converter is 12W.
- SDIP-12-121 is a new version of the ASDC-12-121-HS adapter and can be used interchangeably in its place.
Examples of applications

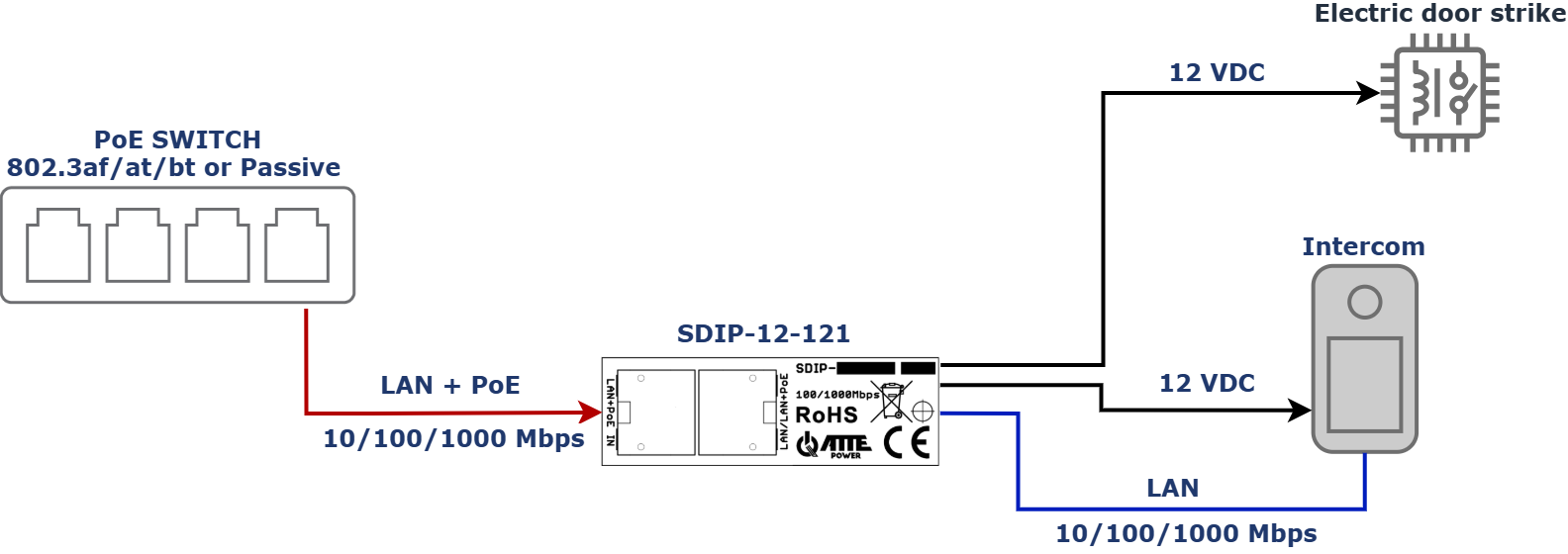

Example of use of SDIP-12-121 to supply a door station with an electric door strike.
Technical data
Total number of ports: | 2 RJ45 PoE ports, 1 DC plug |
Input Voltage: | 35 ... 56 VDC (PoE) |
Surge protection: | LAN IN, LAN OUT, DC OUT |
Overload protection: | DC OUT Overload protection 2A |
Output voltage: | 12 VDC +/-3% |
Output current: | 1 A |
Power indication: | LED at DC output (red) - DC_OUT power supply presence |
PoE indication: | LAN LED (yellow) - presence of PoE power on the port |
Temperature range: | -25°C ... +50°C |
Dimensions: | 63 x 20 x 19 mm |
Weight: | 0,022 kg |
IP rating: | IP20 |
Housing construction: | Polycarbonate |
EAN code: | 5902143691655 |
PKWiU code: | 26.20.40.0 |
HS code: | 8473 30 |
CN2020 code: | 8473 30 20 |
