SDIP-12-124 Gigabit PoE adapter reducing voltage to 12V
Description
SDIP-12-124 is a gigabit PoE adapter with a voltage-reducing converter. The device allows us to power additional devices with a nominal voltage of 12V via PoE 802.3af using a single UTP cable.
The device transmits PoE voltage (35...56V), enabling simultaneous supply of power to a PoE device and an additional device powered from 12V, e.g. a camera with an additional IR illuminator or a door station with an electric door opener.
This makes it possible to provide power supply voltage in places where it is not possible to supply another power source.
SDIP-12-124 is a PoE splitter fully compatible with PoE switches operating in accordance with the 802.3af standard. At the RJ45 output, the device features PoE Passive power supply.
Key features and functions:
- ability to simultaneously power a PoE and 12V device using a single UTP cable
- designed for operation in 10/100/1000Mbps networks
- compatible with PoE 802.3af switches
- high energy efficiency >90%
- cooperation with passive PoE power supplies 35-56V
- small size of the module
- optimised RJ45 connector layout for easy installation in installation boxes
Signalling of the operating status is realised via LEDs:
- LED in RJ45 connectors - PoE power supply on ports
- LED DC - information about the 12V voltage on the DC connector
Total power budget of the PoE port and DC plug output of the SDIP-12-124 is 12W. A higher-power SDIP-20-AD0 (20W) adapter is also available to fulfil the same function for higher demand.
The device has a protection level of IP20, a suitable enclosure (minimum IP44) is required to ensure protection from the elements and condensation.
The device has a very small size, which allows it to be easily integrated into small enclosures.
The adapter has a polycarbonate base to protect the electronics from mechanical damage.
Installation notes
- the total power of the converter is 12W, which is used for the 12 V supply and the PoE supply.
- SDIP-12-124 is a new version of the ASDC-12-124-HS adapter and can be used interchangeably in its place.
Examples of applications

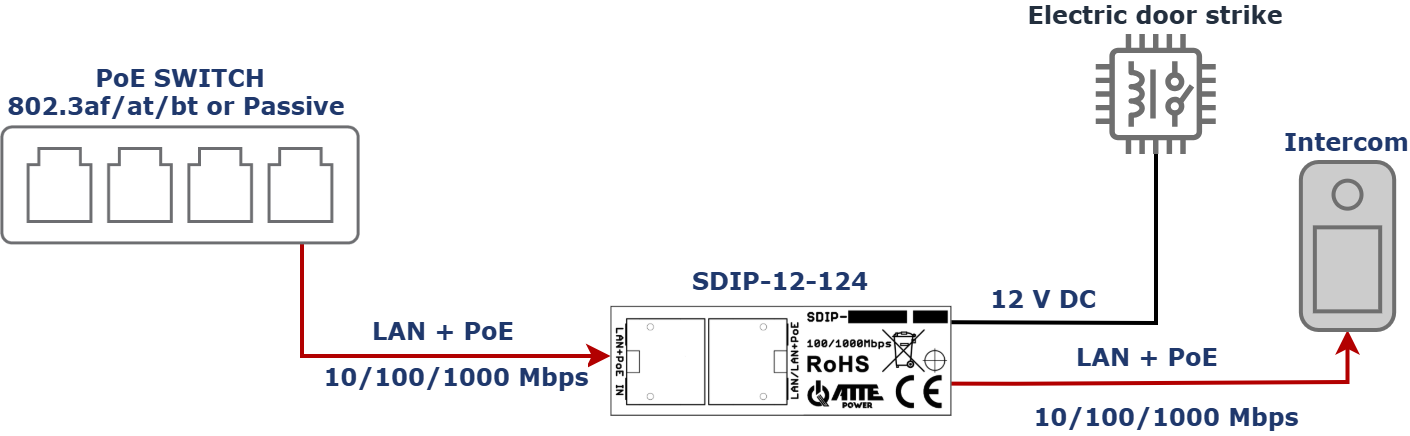

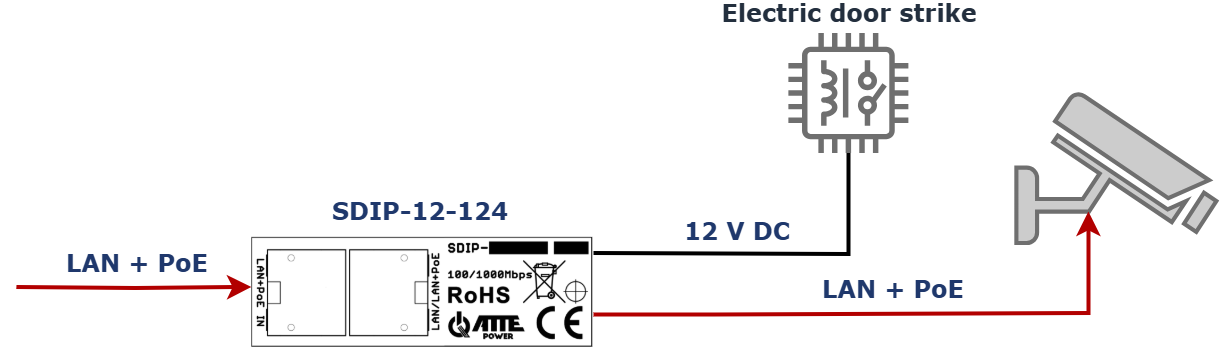

Example of use of SDIP-12-124 to supply power to the door station and electric door opener via a single UTP cable.

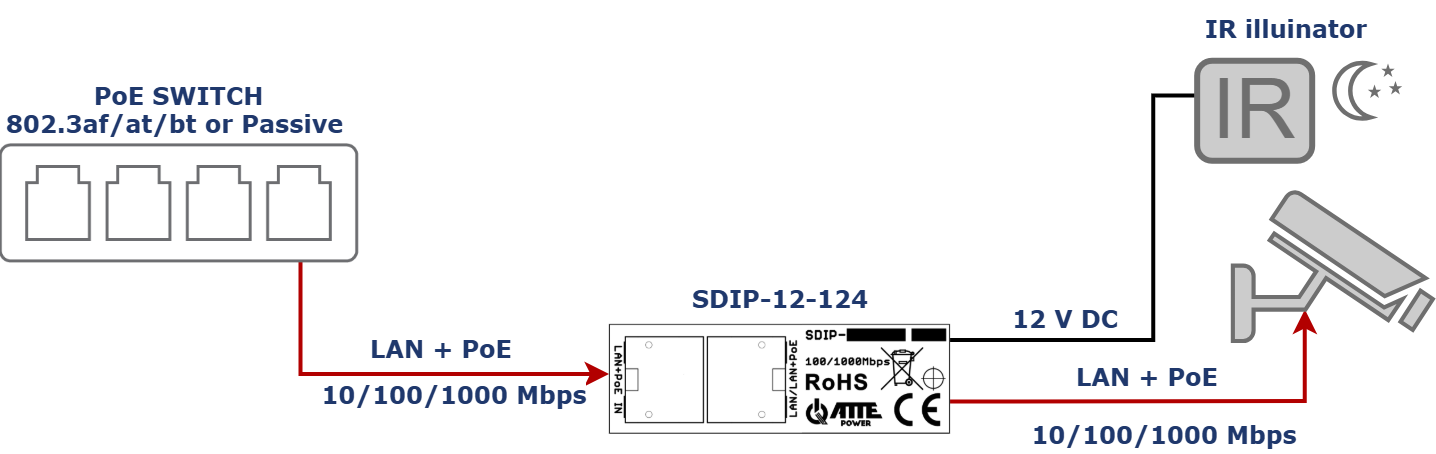

Example of use of SDIP-12-124 to power a camera with additional IR illuminator.
Technical data
| Total number of ports: | 2 RJ45 PoE ports, 1 DC plug |
| Input Voltage: | 35 ... 56 VDC (PoE) |
| Output PoE Voltage: | Vout = Vin, DC_OUT 12 VDC +/-3% |
| Surge protection: | LAN IN, LAN OUT, DC OUT |
| Overload protection: | DC OUT Overload protection 2A |
| Output current: | 1 A |
| Power indication: | LED at DC output (red) - DC_OUT power supply presence |
| PoE indication: | LAN LED (yellow) - presence of PoE power on the port |
| Temperature range: | -25°C ... +50°C |
| Dimensions: | 63 x 20 x 19 mm |
| Weight: | 0,022 kg |
| IP rating: | IP20 |
| Housing construction: | Polycarbonate |
| EAN code: | 5902143691648 |
| PKWiU code: | 26.20.40.0 |
| HS code: | 8473 30 |
| CN2020 code: | 8473 30 20 |
